How Do You Choose the Right Welding Method for Sheet Metal Parts?

Welding is one of the most important steps in sheet metal fabrication, but choosing a welding method is rarely as simple as picking the newest machine in the workshop. A thin stainless steel cover, a heavy equipment frame, and a robot enclosure may all require completely different welding approaches.

The right process depends on the material, thickness, joint design, production quantity, appearance, and how the finished part will actually be used. For a custom sheet metal manufacturer, knowing when to use manual welding and when to introduce automation is just as important as having the equipment itself.

Manual Welding Still Has Its Place

There is a tendency to associate automation with better manufacturing. In practice, that isn't always the case.

For prototypes and low-volume orders, manual welding is often the more practical option. A skilled welder can work with changing designs, unusual geometries, and parts that don't justify the time and cost of setting up a robotic welding program.

This is particularly common with:

• Custom machine frames

• Prototype robot structures

• Small-batch enclosures

• One-off brackets and assemblies

• Parts with difficult-to-reach welds

It also makes a difference when a product is still being developed. A robot may need a new program and fixture when the design changes, while an experienced welder can simply adjust the process and continue.

For these jobs, flexibility is often more valuable than automation.

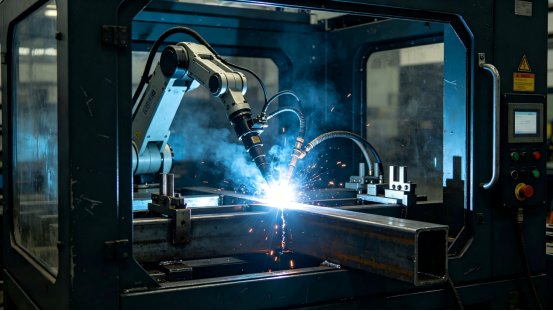

When Robot Welding Starts to Make Sense

The situation changes when a product has reached stable production.

If the same part needs to be welded hundreds or thousands of times, repetitive manual welding can become inefficient. This is where robotic welding can provide a clear advantage.

Once the fixture and welding parameters have been properly established, a robot can repeat the same welding path with very little variation.

This makes robotic welding particularly suitable for:

• Large production runs

• Repetitive frames

• Standard machine structures

• Industrial equipment

• High-volume sheet metal assemblies

The biggest advantage isn't simply speed. It's consistency.

Every part follows the same programmed path, with controlled welding speed, position, and parameters. This can make downstream assembly much more predictable.

MIG, TIG, Spot or Laser Welding?

The choice of welding process also depends heavily on the part itself.

MIG/MAG Welding

MIG/MAG is a practical choice for many steel sheet metal structures. It offers a good balance between welding speed, penetration, and production efficiency.

It is commonly used for:

• Machine frames

• Robot bases

• Structural brackets

• Industrial equipment

It is also well suited to robotic welding, especially when the same joints are repeated throughout a production run.

TIG Welding

TIG is generally chosen when appearance and control are more important than speed.

For thin stainless steel or aluminum parts, TIG allows the welder to carefully control heat input and weld appearance.

It can be a good choice for:

• Stainless steel enclosures

• Thin sheet metal

• Visible welds

• Precision components

It would not make much sense to use TIG for every large production frame simply because it produces a clean weld. The slower process may add unnecessary cost.

Spot Welding

Spot welding works particularly well for overlapping sheet metal.

Instead of creating a continuous weld, individual weld points join the sheets together. It is fast and repeatable, making it useful for panels, cabinets, and other repetitive sheet metal assemblies.

The limitation is the joint itself: the components need to be designed so that the electrodes can reach the required positions.

Laser Welding

Laser welding is gaining attention in applications where low heat input, precision, and appearance are important.

It can be useful for thin sheet metal and precision enclosures where excessive heat could cause deformation.

For the right product, laser welding can reduce distortion and improve production efficiency. But, like any process, it isn't automatically the best choice for every part.

Robotics Is a Good Example of Why Welding Choice Matters

The robotics industry provides a good example.

A robot may contain a heavy structural base, precision brackets, protective covers, and electrical housings. These parts have very different requirements.

A robot base may need a strong welded structure and high repeatability, making robotic MIG welding a sensible choice for larger production quantities.

A thin stainless steel cover may have visible welds and tight dimensional requirements. Manual TIG or laser welding may be more appropriate.

A prototype robot is another story altogether. Its structure may change several times during development, making manual welding much more practical than investing in dedicated fixtures and robotic programming.

The same customer may therefore need different welding methods for different parts of the same robot.

Don't Forget the Fixture

For robotic welding, the robot itself is only part of the equation.

A good welding fixture is critical.

If a part is not positioned consistently, the robot will simply repeat the same error over and over again.

Before introducing robotic welding, manufacturers need to consider:

• Part dimensional accuracy

• Joint gaps

• Fixture positioning

• Clamping method

• Welding sequence

• Heat distortion

This is one reason why accurate laser cutting and CNC bending are important before welding even begins. Better-fitted parts create more consistent joints, which makes the welding process easier to control.

Manual and Robotic Welding Can Work Together

The choice doesn't have to be one or the other.

A practical production route may start with manual welding during the prototype stage. Once the design has been tested and finalized, the manufacturing process can be optimized for larger production runs and transferred to robotic welding.

This gives manufacturers the flexibility to:

Prototype → Test → Improve → Standardize → Automate

It also avoids the common mistake of automating a product before its design is stable.

For custom sheet metal manufacturing, this combination is often more useful than relying entirely on either manual or robotic welding.

What Will Welding Look Like in the Future?

Robotic welding will continue to become more capable. Better sensors, seam tracking, process monitoring, and machine vision are making robots more adaptable to real-world production conditions.

But that doesn't mean manual welding will disappear.

Custom manufacturing is growing alongside automation. Robotics, laboratory equipment, energy systems, medical equipment, and specialized industrial machinery all require parts in different shapes, quantities, and materials.

There will always be jobs where setting up a robot isn't worth the time, and there will always be high-volume applications where manual welding simply cannot match the efficiency and consistency of automation.

The future is more likely to be a combination of the two: automation for repeatability, skilled welders for flexibility, and engineers deciding where each approach makes the most sense.

Choosing the Right Welding Process

There is no universal answer to which welding method is best.

For a prototype, flexibility may be the priority. For 5,000 identical parts, repeatability and production efficiency may matter more. For a visible stainless steel enclosure, appearance may be the deciding factor. For a heavy machine frame, structural strength and productivity may come first.

That's why welding should be considered as part of the entire sheet metal manufacturing process—not as an isolated operation.

A capable fabrication partner should be able to look at the material, geometry, quantity, tolerances, appearance, and final application before recommending a process.

The goal isn't to use the most advanced welding technology.

It's to use the right welding technology for the right part, if you have any welding project, please feel free to contact us anytime.
