Sheet Metal Fabrication: When Can Drilling Replace Welding?

In sheet metal fabrication, welding is a common way to join metal parts. It creates a permanent connection and is widely used for frames, cabinets, brackets, and structural assemblies. However, welding is not always the most practical option.

For some custom sheet metal parts, using drilled holes with screws, bolts, or rivets can simplify assembly, reduce shipping volume, and make future maintenance easier. The right choice depends on the product structure, load requirements, production volume, and installation environment.

Drilling and Mechanical Fastening vs. Welding

Drilling creates holes for mechanical fasteners; it does not join metal parts by itself. When used with bolts, screws, or rivets, it offers an alternative to welded joints in suitable applications.

Mechanical fastening has several advantages in sheet metal fabrication:

• Easier assembly: Parts can be shipped separately and assembled at the customer's facility.

• Lower shipping volume: Flat-packed panels and detachable frames can reduce packaging size and transportation costs.

• Simpler maintenance: Screwed or bolted components can be removed for repair, replacement, or upgrades.

• Less heat distortion: Unlike welding, mechanical fastening does not introduce significant welding heat, helping protect the dimensions and appearance of finished parts.

• More flexible product design: Standard fasteners make it easier to modify assemblies or replace individual components.

However, this approach also has limitations. Holes and fasteners require additional design work and may increase part count and assembly time. Connections can loosen under vibration, and holes may weaken a component if they are placed too close to edges or in highly stressed areas. Proper fastener selection, locking methods, and joint design are essential.

When Can Drilling Replace Welding?

1. Sheet Metal Enclosures Designed for Flat-Pack Shipping

Large enclosures and cabinets can take up considerable space during transportation, especially when fully assembled. Designing panels with pre-drilled holes and bolted connections allows the product to be shipped flat or in smaller sections.

This approach is useful for electrical cabinets, equipment housings, storage systems, and certain outdoor enclosures. It can reduce packaging volume and make handling easier, particularly for international shipments.

The design must still account for panel alignment, joint stiffness, weather sealing, and installation access.

2. Products Requiring On-Site Assembly

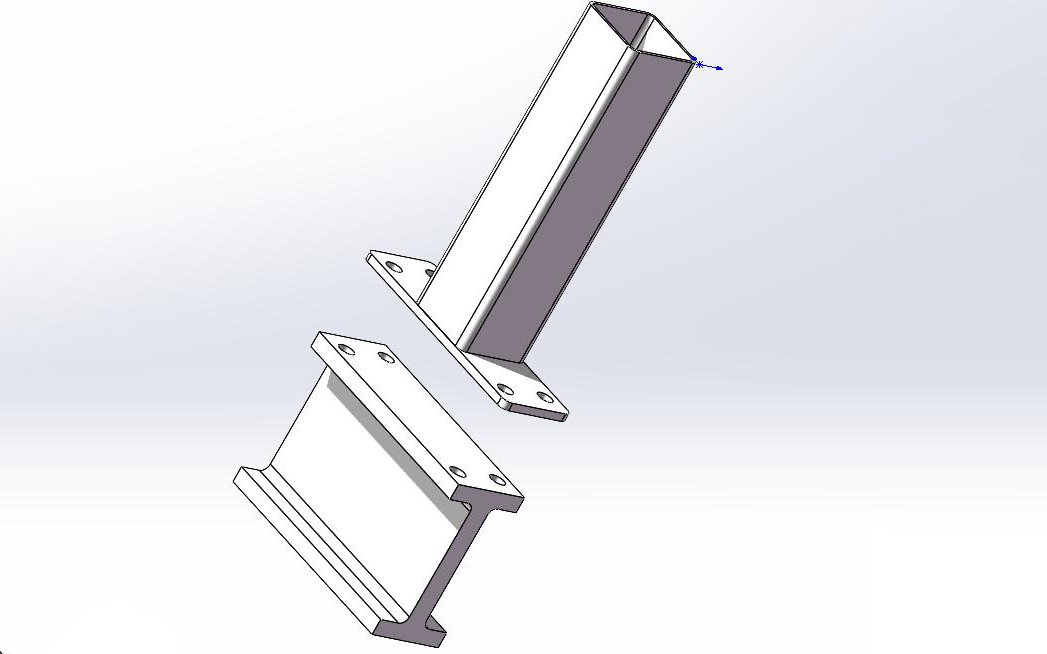

Some equipment is easier to install when its metal components are delivered separately. Mounting brackets, support frames, machine guards, and modular sheet metal structures can often use bolts or screws instead of welded joints.

Pre-positioned holes help installers align components quickly without needing welding equipment at the installation site. This is especially useful when equipment must be assembled in confined spaces or at customer facilities.

3. Products That Need Maintenance or Future Upgrades

For equipment that requires regular inspection or component replacement, removable connections can offer a clear advantage.

For example, access panels, removable covers, internal mounting plates, and modular brackets may use screws or bolts. Instead of cutting a welded joint, technicians can remove the relevant part and reinstall it after servicing.

4. Appearance-Critical Sheet Metal Parts

Welding can leave visible seams, spatter, discoloration, or distortion, all of which may require additional grinding and finishing. For selected products, well-designed mechanical joints can reduce these issues.

Countersunk screws, concealed fasteners, and internal mounting features can help maintain a clean exterior appearance. However, the holes and fasteners themselves must be considered in the product's visual design.

When Is Welding Still the Better Choice?

Mechanical fastening is not a universal replacement for welding. In some applications, welding remains the more suitable solution.

Load-bearing structures: Machine frames, heavy-duty supports, and structures subject to significant loads may require welded joints or a specifically engineered bolted connection. The choice depends on load direction, fatigue, stiffness, and safety requirements.

Sealed enclosures: Outdoor electrical cabinets and equipment housings may require continuous welded seams to achieve the intended sealing performance. Bolted joints can also be sealed, but they need suitable gaskets, controlled compression, and carefully designed interfaces.

High-vibration applications: Robot chassis, industrial machinery, and motor assemblies may experience repeated vibration. Fasteners can loosen if the joint is poorly designed. Suitable locking features and inspection procedures are necessary.

Small or complex parts: Some components are faster and more economical to weld than to drill, align, fasten, and inspect. This is particularly relevant when many fasteners would be required or access is limited.

High-volume production: Depending on the part geometry and production quantity, automated welding may provide a more efficient and consistent process than installing multiple fasteners.

A Combined Approach: Use Welding Where It Matters

In many projects, the best solution is not to eliminate welding completely, but to combine welding with mechanical fastening.

For example, a sheet metal enclosure may use welded corners and a welded base frame for rigidity, while removable covers and mounting panels use screws. A robot chassis may have welded structural sections with bolted interfaces for motors, sensors, and serviceable components.

This hybrid approach balances structural strength, assembly convenience, maintenance, and transportation efficiency.

During the DFM review, manufacturers should evaluate the required load capacity, hole positions, material thickness, bend geometry, fastener access, assembly sequence, and surface treatment. For outdoor products, sealing and corrosion protection around holes and joints also need attention.

A well-planned design can reduce unnecessary welding without compromising product performance.

Custom Sheet Metal Fabrication at Qingdao Huarui

At Qingdao Huarui, we provide custom sheet metal fabrication and CNC machining services for industrial enclosures, equipment frames, mounting brackets, and other metal components. Our capabilities include laser cutting, CNC bending, drilling and hole machining, welding, robotic welding, powder coating, CNC machining, and assembly.

With engineering and QC support, we help customers evaluate whether welded joints, mechanical fastening, or a combination of both is the right choice for their products. From prototype development to batch production, our DFM support focuses on manufacturability, assembly efficiency, dimensional consistency, and practical cost control.

If you are developing a custom sheet metal enclosure or metal structure, reviewing the connection method early can help simplify assembly, reduce shipping volume, and avoid unnecessary manufacturing steps.
