A New Welding Solution for Appearance-Critical Sheet Metal Products

When a weld is located inside a machine, under a cover, or on a structural frame, the appearance may not matter much. But for products such as premium equipment enclosures, robot housings, electrical cabinets, metal furniture, display equipment, and consumer products, the weld itself can become part of what the customer sees.

And that creates a familiar problem in sheet metal fabrication:

How do you achieve a reliable welded structure without leaving obvious weld marks on the visible surface?

Traditional welding is not always the ideal answer. Grinding can remove visible weld beads, but it adds labor and can affect the surface. Excessive heat may also cause distortion, especially on thin sheet metal panels. For products with brushed stainless steel, powder coating, or other appearance-sensitive finishes, repairing the surface after welding can become another challenge.

As sheet metal products place greater emphasis on appearance, manufacturers need to look beyond traditional welding methods.

At Qingdao Huarui, we are continuously exploring more suitable welding solutions for different sheet metal products, especially for projects where both structural strength and appearance matter.

Why Is Welding a Challenge for Appearance-Critical Sheet Metal?

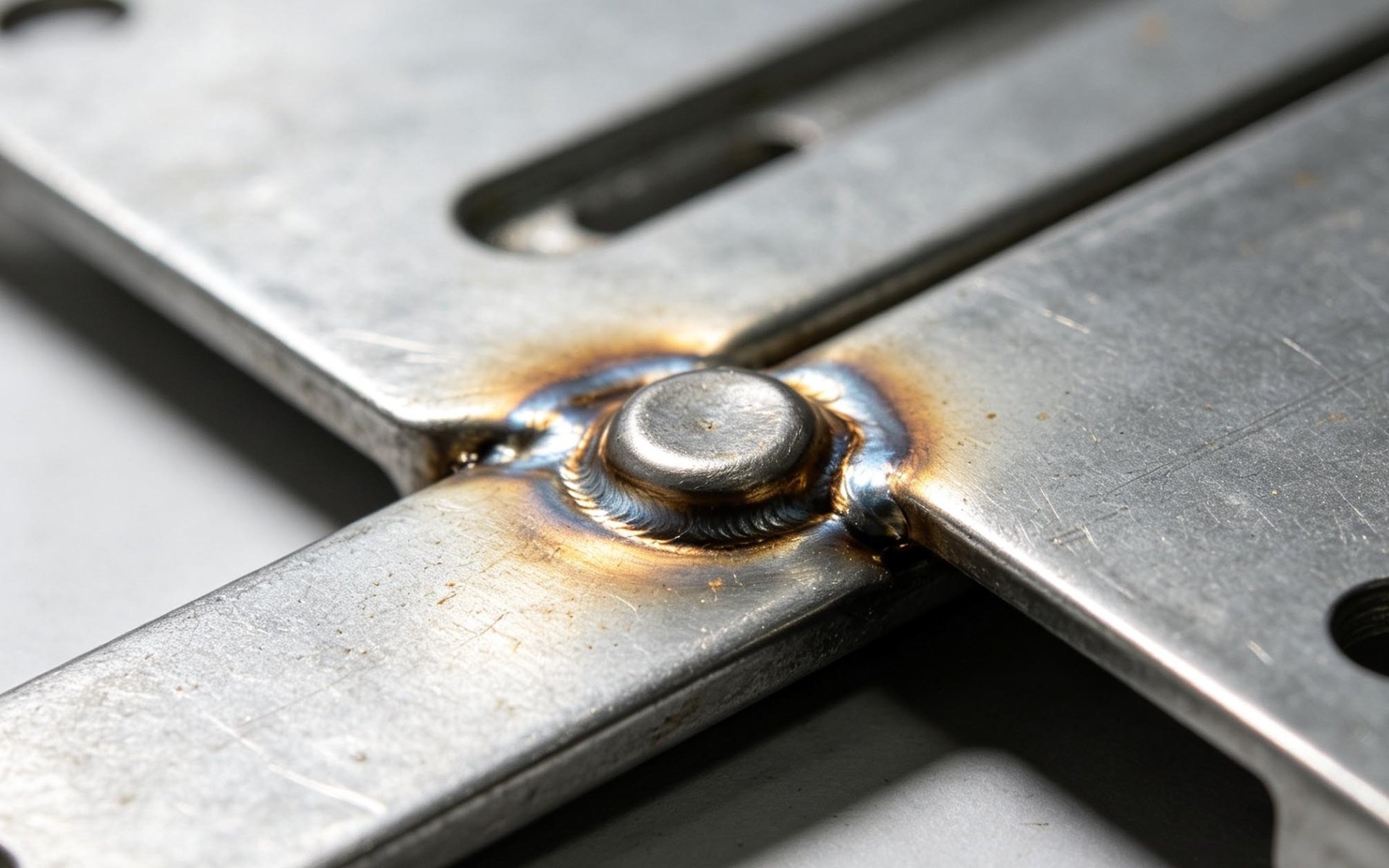

Welding permanently joins metal parts together, but the welding process also changes the material.

Depending on the process and product design, welding may create:

• Visible weld beads

• Heat marks

• Discoloration

• Surface deformation

• Weld spatter

• Grinding marks

• Distortion on thin sheet metal

For a heavy-duty steel frame, these issues may be acceptable.For the front panel of a high-end machine enclosure, they may not be.

Imagine a large sheet metal cabinet with a clean, smooth outer surface. If the corner is welded from the outside, the weld bead may need to be ground and refinished. Even after careful grinding, it can be difficult to completely restore a uniform surface. In these cases, the welding process needs to be considered much earlier in the design stage.

The Best Weld Is Sometimes the One You Cannot See

For appearance-sensitive products, one practical approach is to change where and how the parts are joined.

Instead of placing the weld on the visible surface, the product can sometimes be designed so welding happens:

• On the inside of the enclosure

• Behind a folded edge

• Under an overlapping flange

• On a hidden structural bracket

• Inside a double-layer structure

This sounds simple, but it can make a major difference to the finished product.

A small change in sheet metal design may allow the visible surface to remain untouched while the structural joint is hidden inside the product.

This is where sheet metal fabrication and welding design need to work together.

The welding method should not be selected only after the parts have already been designed.

Laser Welding: A Different Option for Thin and Appearance-Sensitive Metal

Laser welding has become an increasingly interesting option for certain custom sheet metal products.

Compared with some traditional welding processes, laser welding can provide:

• A smaller heat-affected area

• Narrower weld seams

• Reduced visible welding marks

• Less distortion on suitable parts

• Faster welding in certain applications

For thin sheet metal, controlling heat is particularly important.

Too much heat can cause panels to deform. Once a large, thin panel has warped, correcting it may require additional work—and sometimes the result is still not ideal.

Laser welding can offer another option where a focused heat source and controlled weld seam are beneficial.

However, laser welding is not automatically the best choice for every sheet metal product.

Joint design, material, thickness, weld accessibility, required strength, production quantity, and appearance requirements all need to be considered.

Sometimes the Solution Is Not a New Welding Machine

When customers hear about improving welding quality, they often think about more advanced equipment.

But equipment is only one part of the solution.

Sometimes the best improvement comes from changing the sheet metal structure itself.

For example, instead of using a simple butt joint on a visible panel, engineers may consider:

• Folded edges

• Overlapping joints

• Internal support structures

• Hidden flanges

• Tabs and slots

• Internal welding points

These changes can help locate parts during assembly and move welding away from visible surfaces.

In some cases, the structure can even reduce the amount of welding required.

This is one reason DFM for sheet metal fabrication is especially important for products with high cosmetic requirements.

A part that is easy to weld is not always easy to make look good.

Welding From the Inside: A Practical Solution for Metal Enclosures

Metal enclosures are a good example.

A customer may want:

• Clean external surfaces

• Strong corners

• No visible fasteners

• A durable powder-coated finish

These requirements can conflict with traditional manufacturing methods.

External welding may provide strength but leave visible marks.

Mechanical fasteners may avoid weld marks but leave screws or rivets visible.

A more suitable approach may be to redesign the corner so the welding is completed from the inside.

The external panel can remain smooth while the internal structure provides the required strength.

This type of solution is increasingly useful for:

• Electrical enclosures

• Equipment cabinets

• Robot housings

• Machine covers

• Battery enclosures

• Premium industrial products

The exact solution depends on the product, but the principle is the same:

Good appearance often starts with the joint design, not the final surface treatment.

Robot Enclosures Need Both Strength and Appearance

Robotics is one industry where appearance requirements are becoming increasingly important.

In the past, many industrial machines were hidden behind safety fences or placed away from customers.

Today, robots are increasingly visible.

They work in:

• Warehouses

• Retail spaces

• Hospitals

• Hotels

• Restaurants

• Offices

• Public environments

As a result, robot manufacturers often care about the appearance of the enclosure just as much as the internal structure.

A robot housing may need to:

• Protect electronics

• Support internal components

• Resist vibration

• Provide ventilation

• Allow maintenance access

• Maintain a clean external appearance

The welding process becomes part of that design challenge.

At Qingdao Huarui, we see increasing demand for custom sheet metal robot housings and automation equipment where customers want fewer visible welding marks and cleaner external surfaces.

For these products, we can review the sheet metal structure and discuss whether hidden welding, laser welding, alternative joint designs, or other manufacturing methods may be more suitable.

Manual Welding, Robotic Welding, and Laser Welding: Different Tools for Different Jobs

There is no single welding method that works best for every sheet metal project.

Manual Welding

Manual welding remains practical for:

• Prototypes

• Low-volume production

• Complex structures

• Products with frequent design changes

• Difficult-to-access areas

An experienced welder can adapt quickly to different products, which makes manual welding valuable for custom fabrication.

Robotic Welding

Robotic welding is often better suited to:

• Stable designs

• Repeat production

• Larger quantities

• Repetitive weld paths

• Consistent assemblies

Once the process is established, welding robots can improve repeatability and production efficiency.

Laser Welding

Laser welding can be an interesting option for:

• Certain thin metal products

• Appearance-sensitive components

• Narrow weld requirements

• Products where heat control is important

The important point is not to choose the newest technology simply because it sounds more advanced.

The right welding process depends on the product.

Powder Coating and Welding: What Should Be Considered?

Powder coating is widely used in custom sheet metal fabrication because it provides a durable and attractive finish.

But welding needs to be completed and properly prepared before coating.

Poorly cleaned weld areas may affect the final coating appearance.

Grinding marks may also become visible after coating, particularly with certain gloss levels or textures.

For large visible enclosures, our production team considers:

• Weld locations

• Grinding requirements

• Surface smoothness

• Hanging points

• Coating accessibility

• Visible surfaces

At Qingdao Huarui, we also use an automatic powder coating line to improve coating consistency across suitable production projects.

For appearance-sensitive products, welding and powder coating should be planned as one manufacturing process rather than two separate steps.

The Future of Welding in Sheet Metal Fabrication

As industrial products become more refined, manufacturers are being asked to deliver more than strong metal structures.

Customers increasingly want products that are:

• Strong

• Precise

• Lightweight

• Easy to assemble

• Durable

• Visually clean

This is changing the way manufacturers think about welding.

The future is not simply about replacing manual welding with robots or introducing more laser welding machines.

It is about combining better product design, smarter joint structures, flexible welding processes, and improved finishing techniques.

For appearance-critical sheet metal products, the goal is simple:

Keep the structure strong without making the welding the first thing people notice.

At Qingdao Huarui, we continue to explore more practical manufacturing solutions for custom sheet metal products where both performance and appearance matter.

Whether you are developing a robot enclosure, electrical cabinet, machine housing, or another custom metal product, our team can help evaluate the sheet metal design and recommend a suitable welding and fabrication solution.
