When clients send us a 3D CAD model, they often see a clean, finished metal box. But transitioning that digital file into a rugged, high-precision electronic enclosure requires navigating a complex, multi-stage journey. Sheet metal fabrication is never just about bending steel, it is a highly choreographed sequence of engineering decisions where a mistake in the first ten seconds can ruin the entire batch.

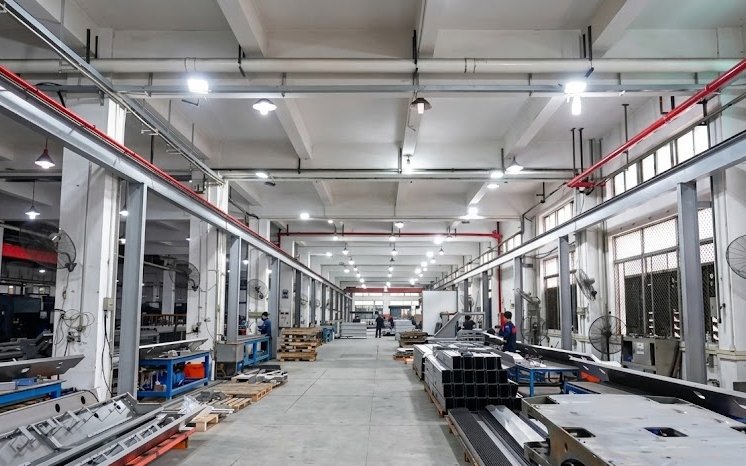

To help procurement managers and hardware engineers design more cost-effective parts, let’s pull back the curtain and walk through the full, end-to-end sheet metal production process on the factory floor.
Every successful project begins with Design for Manufacturability (DFM). Before a single laser fires, our engineering team analyzes the STEP files. We check if the chosen bend radius matches our existing toolings, evaluate material grain direction, and calculate the exact bend allowance. Once optimized, the 3D model is flattened into a 2D layout and programmed into the machines via CAM software.
The 2D flat shape must be cut from raw metal sheets. We typically use high-power fiber lasers for complex geometries and thick plates, ensuring clean edges with zero heat deformation. For high-volume orders with repeated patterns or louvers, CNC turret punching is utilized. Precision at this stage is locked within 0.1mm to prevent cumulative errors later.
Raw laser-cut edges possess micro-burrs that are sharp enough to cut skin or slice through electrical wiring during final assembly. Every blank undergoes automated or manual deburring. This stage is crucial for ensuring proper paint adhesion later; finish coatings will always chip off first on a sharp, unconditioned edge.
This is where the flat metal gains its three-dimensional structure. Using multi-axis CNC press brakes, operators apply thousands of pounds of pressure to form precise angles. The real skill here is compensating for "springback"—the natural tendency of metal to slightly unbend after the tool releases. Experienced technicians adjust the pressure dynamically based on the material batch's specific tensile strength.
Before welding, we install threaded standoffs, studs, and nuts using automated hardware insertion presses. Pressing these self-clinching fasteners into the sheet metal while it is still accessible ensures they are perfectly perpendicular and locked tight, preventing them from spinning out during field installation.
To transform formed flaps into a solid structure, the enclosure moves to the welding bay. Whether utilizing TIG for delicate aluminum or laser welding for seamless stainless steel joints, heat control is everything. Too much heat warps the sheet metal. Once welded, the seams are ground down and polished until the joint is structurally sound and visually invisible.
The final stage provides both protection and aesthetics. After a thorough multi-stage chemical wash to remove shop oils, the parts receive powder coating, anodizing, or passivating. Finally, the enclosures enter QC, where they are checked with calipers, film thickness gauges, and CMMs to guarantee they match the initial print perfectly.
Understanding this workflow is the key to reducing your manufacturing costs. For example, designing a part that uses a standard bend radius saves tooling changeover time in Stage 4, while avoiding tight internal corners reduces grinding time in Stage 6.
Are you working on a new enclosure or structural chassis? Send over your drawings, and let our engineering team run a complimentary DFM analysis to optimize your design for the workshop floor.
![]()
